Specification:

1.  frequency range: 50Mhz-3000Mhz

2.   Gain : 33 +/- 2.5 dB

3.   return loss: 10 dB min @  > 150MHz ,

            7dB min @  < 150MHz

4.   P out 1dB compression : 4 dBm min

5.   D.C. input : < 50 mA  @  8 to 28 V

                     2003/7/25

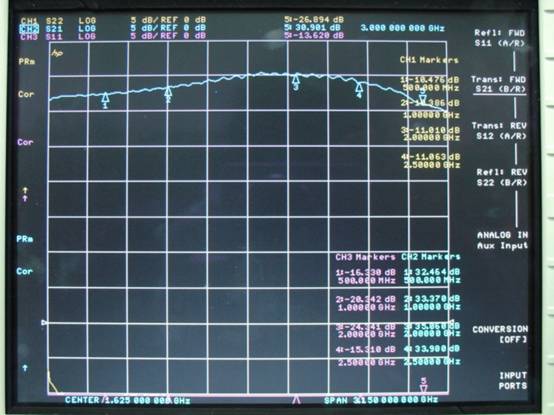

Fig1. S21 : gain

     S11 : input return loss , S22 : output return loss
